Ideal for energy saving installations in the workplace, corridors, offices, toilets etc., where light control can make all the difference.

Single channel surface ceiling mount.
Switches lights on when presence is detected and to light levels (LUX) set.
360º circular detection, range up to 7m at 2.5m mounting height.
3 user friendly adjustments for Time, LUX levels and Metre range.
Timer adjustment – continuous from 5 sec to 20 minutes (up to 30 or 60 minutes with IR10 remote).
Lux adjustment – continuous from 10 to 2000 Lux.
Metre adjustment – approx (-) dia 1m to (+) dia 7m at 2.5m height.
Total switching: 2000W incandescent/halogen, 750W fluorescent/low energy.
Optional infra-red remote control for remote set-up and adjustment using part code IR-10. Also gives extended lamp ON times.
LED indication on detection and on optional remote control set-up.
Side or bottom cable entry.
Up to 400W LED (Max) lighting.

Operating Voltage	230V AC
1 or 2 Channel	1 Channel
1st Channel Filament/Halogen Loading (W)	2000/1000
1st Channel Fluorescent/Low Energy Loading (W)	900
Weatherproof Rating	IP40
Detection Range (Max) Metres	7 Dia
Angle of Detection	360º
Light On Time After last detection (Adjustable)	5 Seconds (Min), 60 Minutes with IR10 (Max)
Permanent ON Facility	Electronic with IR10
Adjustable Light Level Control	Yes
LED (Max) lighting	Up to 400W
Conforms to Directives	73/23/EEC, 89/336/EEC
Overall Dimensions (mm)	Height 42.5, Width 121.5, Depth 121.5

Current rating is 0.00. Total votes 0.

PDSM361

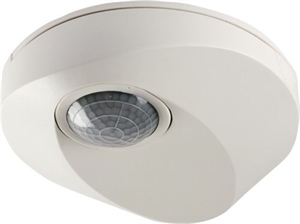

PIR Presence Detector - Surface Mount, Single Channel

SKU: PDSM361

Manufacturer: Timeguard

Now: £51.59 excl vat
