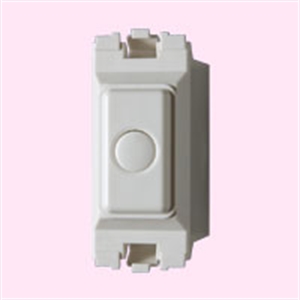

Grid module slave push button
For MK Grid Plus. These are normally open (push to make) push buttons. They can be used as slave switches to operate a DANLERS time lag switch.
Specification
| Dimensions: |
24 x 59 x 34mm. Minimum wall box depth 35mm. |
Dimensions
|
24 x 59 x 34mm.
Minimum wall box depth 35mm.
|
 |
Wiring Diagrams
| Slave push buttons, with DANLERS grid time lag switch or soft start dimmer switch. |
 |
| Slave push buttons with DANLERS 3 wire, plated, time lag switch. |
 |
| Slave push buttons with DANLERS 2 wire, plated, time lag switches. |
 |
