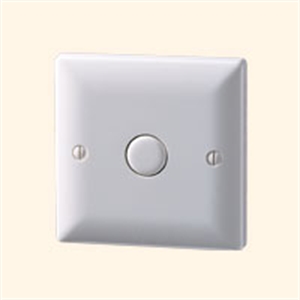

Picture of DSS1D 400W

Square plated soft start dimmer.

These dimmers can be used to dim lights from several locations.

They are suitable for dimming resistive lamps, dimmable transformer low voltage lamps.



Functions

Slim buttons give an easy press action. Pressing the button dims or brightens the light to any level. A quick press switches off. Another press returns the lamp softly to its previous brightness. These dimmers can also be used to control the speed of fans and motors.



Special Features

All versions are suitable for mains halogen* lamps without the need for derating.

*Mains halogen lamps must have an integral thermal safety fuse.

  • The soft start feature prolongs the lamp life.
  • Multi-way switching and dimming can be achieved from any position only by using the complementary DANLERS slave switches.
  • The grid module versions fit any position on the appropriate grid or plate system.
  • These dimmers automatically switch off in the event of transformer malfunction, helping to protect the dimmer and the transformer.



Specification

Min. and Max. wattage:

Resistive, mains halogen or dimmable electronic transformer load: 60 – 400W
Dimmable wire-wound or toroidal transformer inductive loads: 60 – 250W
Max. No. of trans-formers: 6



For loading of Grid dimmers on multi-gang plates the following limits also apply:

2 gang plates: Maximum for total plate – 630W
3 or 4 gang plates: Maximum for total plate – 1000W
6, 8, 9 or 12 gang plates: Maximum per row – 1000W
18 or 24 gang plates: Maximum per row – 1200W



Dimensions: 86 x 86 x 12mm, minimum wall box depth of 16mm





Current rating is 0.00. Total votes 0.



DSS1D 400W

Dimmer 1g 400w Softstart
SKU: DSS1D 400W
Manufacturer: Danlers
Bookmark and Share
Was:  £22.47 excl vat
Now: £21.72 excl vat
