| Commercial Status |
Commercialised
|
| Range of product |

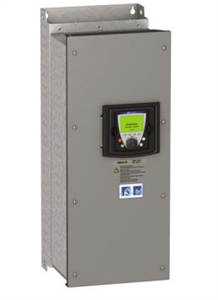

Altivar 61
|
| Product or component type |
Variable speed drive
|
| Product specific application |
Pumping and ventilation machine
|
| Component name |
ATV61
|
| Motor power kW |
7.5 kW 3 phases at 380...480 V
|
| Motor power hp |
10 hp 3 phases at 380...480 V
|
| Power supply voltage |
380...480 V (- 15...10 %)
|
| Supply number of phases |
3 phases
|
| Line current |
15.8 A for 380 V 3 phases 7.5 kW / 10 hp
13.3 A for 480 V 3 phases 7.5 kW / 10 hp
|
| EMC filter |
Class C2 EMC filter integrated
|
| Assembly style |
Enclosed
|
| Apparent power |
10.4 kVA for 380 V 3 phases 7.5 kW / 10 hp
|
| Maximum prospective line Isc |
22 kA 3 phases
|
| Maximum transient current |
17.6 A for 60 s 3 phases
|
| Nominal switching frequency |
8 kHz
|
| Switching frequency |
8...16 kHz with derating factor
2...16 kHz adjustable
|
| Asynchronous motor control |
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard
Voltage/frequency ratio - Energy Saving, quadratic U/f
|
| Synchronous motor control profile |
Vector control without sensor, standard
|
| Communication port protocol |
CANopen
Modbus
|
| Type of polarization |
No impedance for Modbus
|
| Option card |
Profibus DP V1 communication card
Profibus DP communication card
Multi-pump card
Modbus/Uni-Telway communication card
Modbus TCP communication card
Modbus Plus communication card
METASYS N2 communication card
LonWorks communication card
Interbus-S communication card
I/O extension card
Fipio communication card
Ethernet/IP communication card
DeviceNet communication card
Controller inside programmable card
CC-Link communication card
BACnet communication card
APOGEE FLN communication card
|
