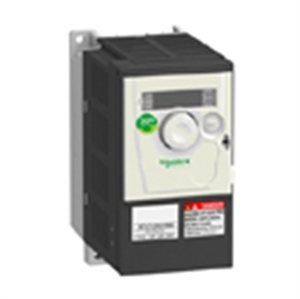

Picture of ATV312HU22N4



Commercial Status Commercialised
Range of product Altivar 312
Product or component type Variable speed drive
Product destination Asynchronous motors
Product specific application Simple machine
Assembly style With heat sink
Component name ATV312
Motor power kW 2.2 kW
Motor power hp 3 hp
[Us] rated supply voltage 380...500 V (- 15...10 %)
Supply frequency 50...60 Hz (- 5...5 %)
Network number of phases 3 phases
Line current 8.9 A for 380 V, 1 kA
6.7 A for 500 V
EMC filter Integrated
Apparent power 5.9 kVA
Maximum transient current 8.3 A for 60 s
Power dissipation in W 79 W at nominal load
Speed range 1...50
Asynchronous motor control profile Factory set : constant torque
Sensorless flux vector control with PWM type motor control signal
Electrical connection L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 5 mm² AWG 10
Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5 mm² AWG 14
Supply Internal supply for reference potentiometer (2.2 to 10 kOhm) at 10...10.8 V <= 10 mA for overload and short-circuit protection
Internal supply for logic inputs at 19...30 V <= 100 mA for overload and short-circuit protection
Communication port protocol CANopen
Modbus
IP degree of protection IP41 on upper part
IP31 on upper part
IP21 on connection terminals
IP20 on upper part without cover plate
Option card Profibus DP communication card
Modbus TCP communication card
Fipio communication card
DeviceNet communication card
CANopen daisy chain communication card



Technical Sheet





Current rating is 0.00. Total votes 0.



ATV312HU22N4

ATV312 2.2kW 500V 3 Phases
SKU: ATV312HU22N4
Manufacturer: Schneider
Bookmark and Share

Now: £549.93 excl vat
